6820.01.A

Mechanical data

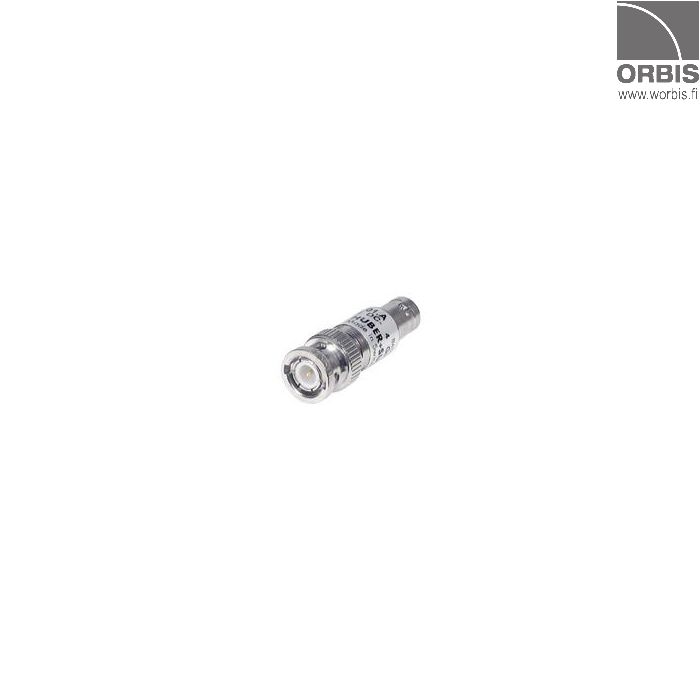

Coaxial standard RF attenuator, low power by Huber+Suhner.

• BNC plug (male) to BNC jack (female)
• Weight: 0,025 kg

Electrical data

• Nominal Impedance: 50 Ω
• Nominal Attenuation: 20 dB
• Frequency range: DC to 4 GHz
• Frequency sub range (GHz): DC to 2
  • Attenuation deviation (±dB): 0.5
  • VSWR max.: 1.1
• Frequency sub range (GHz): 2 to 4
  • Attenuation deviation (±dB): 1
  • VSWR max.: 1.2
• Power rating: 1 Watt average power up to 30C ambient temperature, linearly derated to 0 Watt at 130 ̊C ambient temperature. 500 Watt peak power, 5 μs pulse, 0.05 % duty cycle

Environmental data

• Operating temperature: -55C...+130C
• 2011/65/EU (RoHS) compliant
