6806.19.A

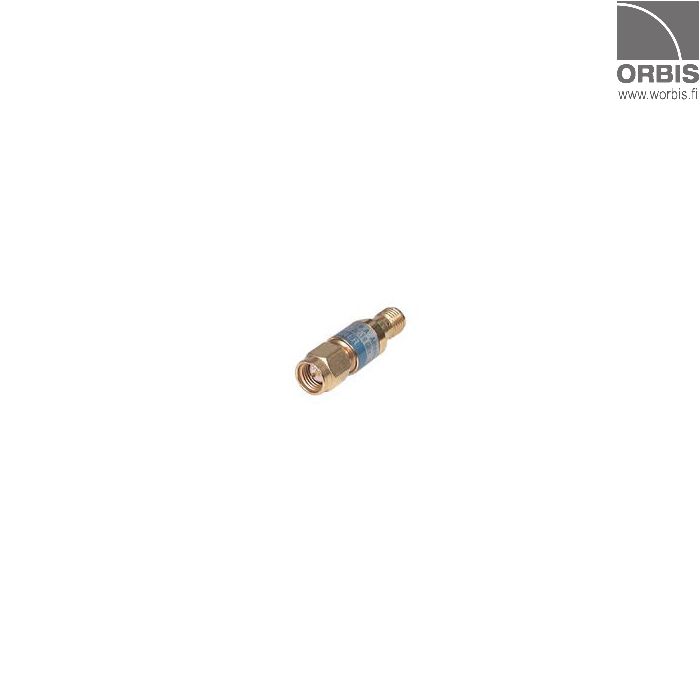

RF Vaimennin (Attenuator). Valmistaja Huber+Suhner.
Tuotekoodi
22550030
88,50 €
Varastossa 0, Toimitusaika 42 arkipäivää tilauksesta, tuotteen ollessa loppu varastosta.

Mechanical data

Coaxial standard RF attenuator, low power by Huber+Suhner.

  • SMA plug (male) to SMA jack (female)
  • Weight: 0,008 kg

Electrical data

  • Nominal Impedance: 50 Ω
  • Nominal Attenuation: 6 dB
  • Frequency range: DC to 18 GHz
  • Frequency sub range (GHz): DC to 4
    • Attenuation deviation (±dB): 0.3
    • VSWR max.: 1.1
  • Frequency sub range (GHz): 4 to 8
    • Attenuation deviation (±dB): 0.3
    • VSWR max.: 1.2
  • Frequency sub range (GHz): 8 to 12.4
    • Attenuation deviation (±dB): 0.5
    • VSWR max.: 1.2
  • Frequency sub range (GHz): 12.4 to 18
    • Attenuation deviation (±dB): 0.8
    • VSWR max.: 1.35
  • Power rating: 1 Watt average power up to 30 ̊C ambient temperature, linearly derated to 0 Watt at 130 ̊C ambient temperature. 500 Watt peak power, 5 μs pulse, 0.05% duty cycle

Environmental data

  • Operating temperature: -55C...+130C
  • 2011/65/EU (RoHS) compliant
