6803.17.B

Mechanical data

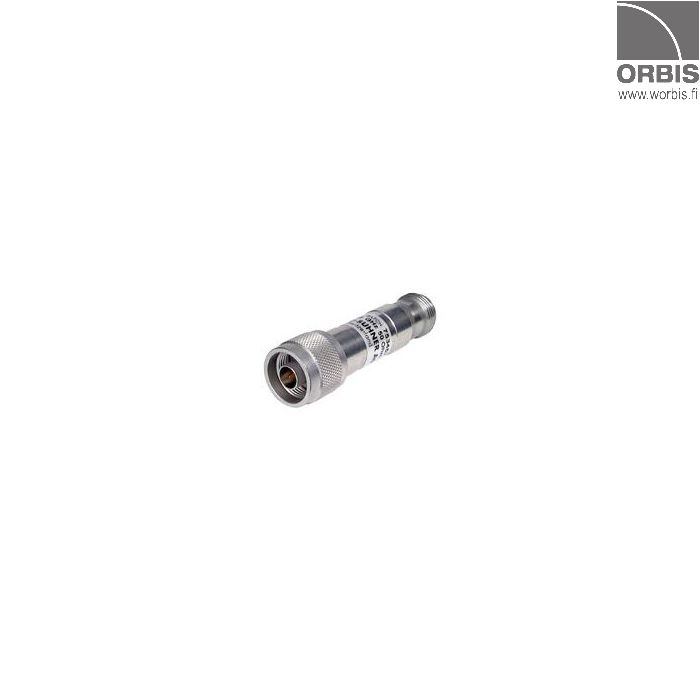

Coaxial precision RF attenuator, low power by Huber+Suhner.

• N-precision plug (male) to N-precision jack (female)
• Weight: 0,086 kg

Electrical data

• Nominal Impedance: 50 Ω
• Nominal Attenuation: 3 dB
• Frequency range: DC to 18 GHz
• Frequency sub range (GHz): DC to 4
  • Attenuation deviation (±dB): 0.3
  • VSWR max.: 1.1
• Frequency sub range (GHz): 4 to 6

  • Attenuation deviation (±dB): 0.3
  • VSWR max.: 1.1
• Frequency sub range (GHz): 6 to 8

  • Attenuation deviation (±dB): 0.3
  • VSWR max.: 1.15
• Frequency sub range (GHz): 8 to 12.4

  • Attenuation deviation (±dB): 0.5
  • VSWR max.: 1.15
• Frequency sub range (GHz): 12.4 to 18

  • Attenuation deviation (±dB): 0.8
  • VSWR max.: 1.25
• Power rating: 2 Watt average power up to 30 ̊C ambient temperature, linearly derated to 0 Watt at 130 ̊C ambient temperature. 500 Watt peak power, 5 μs pulse, 0.05 % duty cycle

Environmental data

• Operating temperature: -55C...+130C
• 2011/65/EU (RoHS) compliant
