34_SMA-50-0-3/111_NE

Mechanical data

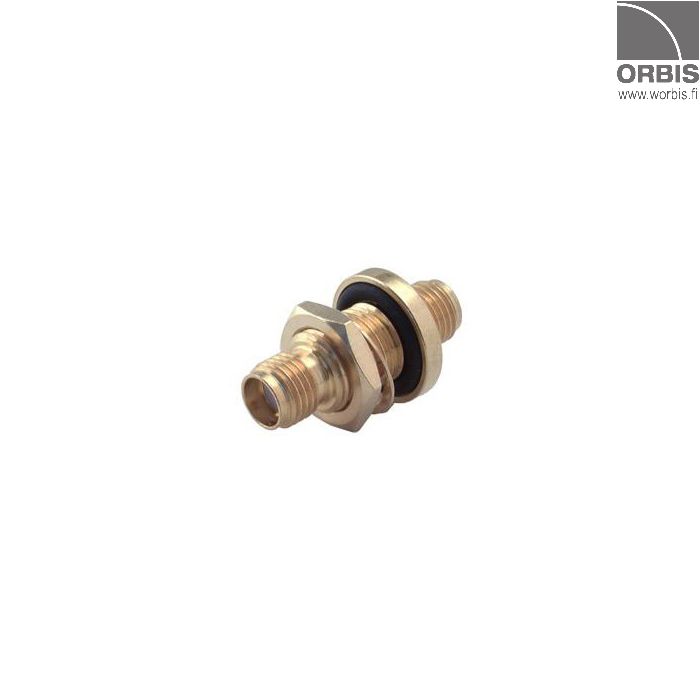

Bulkhead adapter jack/jack.
Hermetic sealed connector.
Ingress protection according to IP68.
SMA jack (female) / SMA jack (female)

• Chassis torque: 2 Nm
• Number of matings: 500
• Weight: 0,0068 kg

Electrical data

• Impedance: 50 Ω
• Interface Freq max: 18 GHz
• Frequency Range: 0 to 3 GHz

  • Return Loss: 26dB
• Frequency Range: 3 to 7 GHz

  • Return Loss: 20 dB
• Frequency Range: 7 to 18 GHz

  • Return Loss: 17 dB

Environmental data

• Operating temperature: -20C...+165C
• 2011/65/EU (RoHS) compliant
