33_MMBX-SMA-50-1/111_NE

Mechanical data

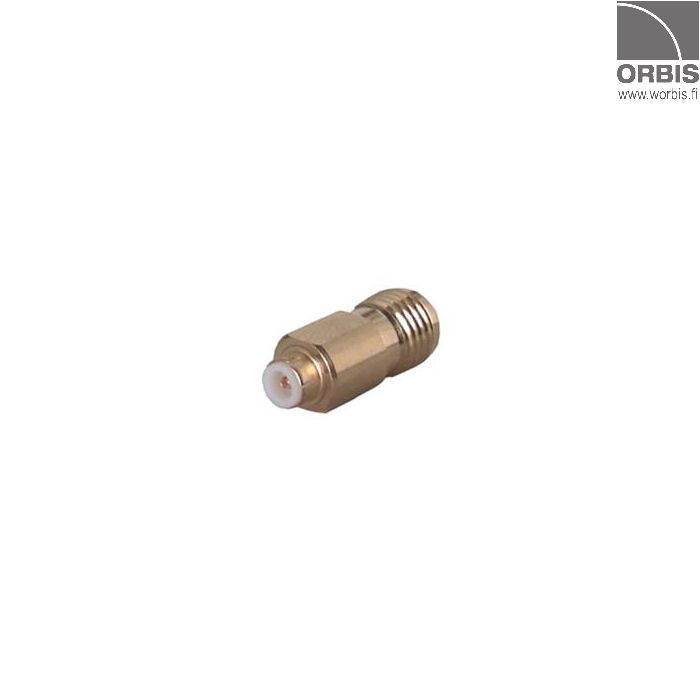

Adapter plug/jack
MMBX plug (male) / SMA jack (female)

• Number of matings: 500
• Weight: 0,0018 kg

Electrical data

• Impedance: 50 Ω
• Interface Freq max: 12.4 GHz
• Frequency range: DC to 2.5 GHz
  • Return loss: ≥ 32 dB
• Frequency range: 2.5 to 6 GHz
  • Return loss: ≥ 30 dB
• Frequency range: 6 to 12.4 GHz
  • Return loss: ≥ 16 dB

Environmental data

• Operating temperature: -55C to +155C
• 2011/65/EU (RoHS) compliant
