32_716-50-0-1/003_-E

RF adapteri. Valmistaja Huber+Suhner.

Tuotekoodi
22544118
80,13 €
Varastossa 0, Toimitusaika 42 arkipäivää tilauksesta, tuotteen ollessa loppu varastosta.


Mechanical data

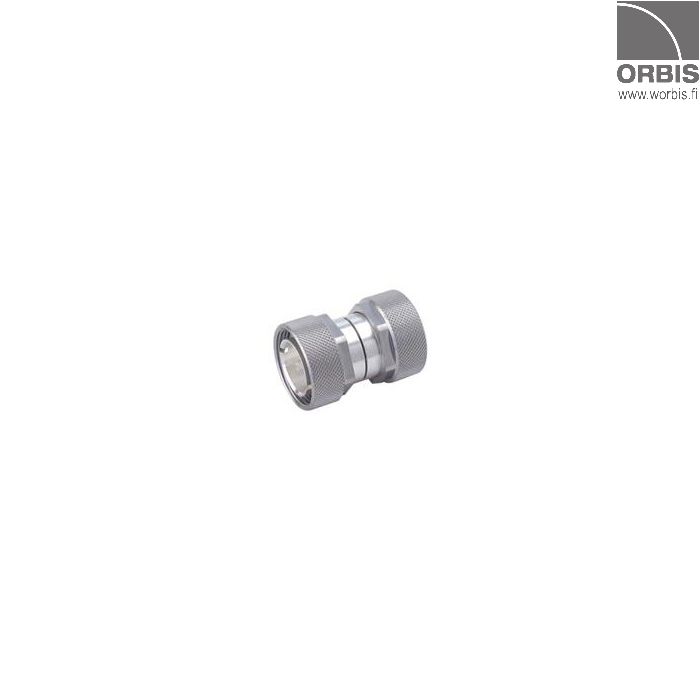

Coaxial precision RF adapter plug/plug for test and measurement applications.
7/16-precision plug (male) / 7/16-precision plug (male)

  • Number of matings: 500
  • Weight: 0,1281 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 7.5 GHz
  • Frequency range: DC to 2 GHz
    • Return loss: ≥ 40 dB
  • Frequency range: 2 to 4 GHz
    • Return loss: ≥ 36 dB
  • Frequency range: 4 to 6 GHz
    • Return loss: ≥ 34 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant
Lisätietoja
Väri ei vastattu


Mechanical data

Coaxial precision RF adapter plug/plug for test and measurement applications.
7/16-precision plug (male) / 7/16-precision plug (male)

  • Number of matings: 500
  • Weight: 0,1281 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 7.5 GHz
  • Frequency range: DC to 2 GHz
    • Return loss: ≥ 40 dB
  • Frequency range: 2 to 4 GHz
    • Return loss: ≥ 36 dB
  • Frequency range: 4 to 6 GHz
    • Return loss: ≥ 34 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant
Tuotteiden hinnat näytetään Alv 0%.
