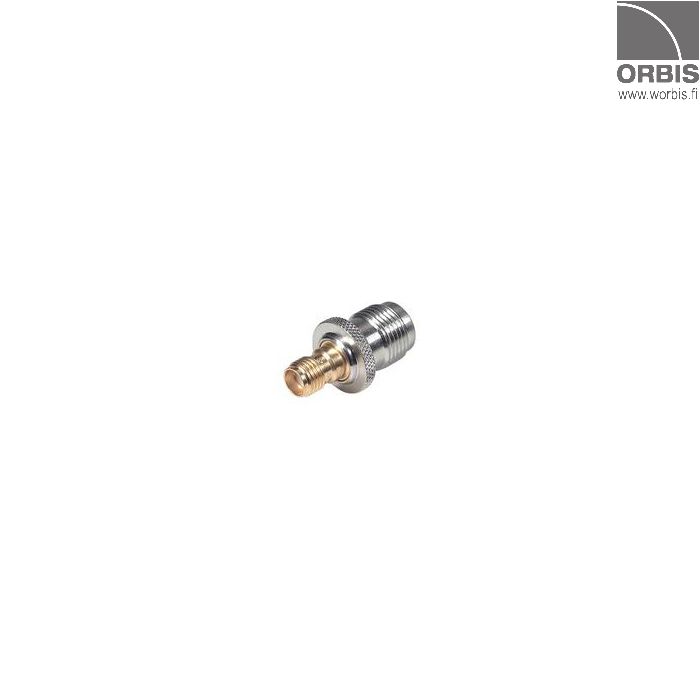

31_SMA-TNC-50-1/1--_UE

RF adapteri. Valmistaja Huber+Suhner.

Tuotekoodi
22640941
25,73 €
Varastossa 0, Toimitusaika 28 arkipäivää tilauksesta, tuotteen ollessa loppu varastosta.


Mechanical data

Coaxial RF adapter jack/jack.
SMA jack (female) / TNC jack (female)

  • Number of matings: 500
  • Weight: 0,0079 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 11 GHz
  • Frequency range: DC to 2 GHz
    • Return Loss: ≥ 26.4 dB
  • Frequency range: 2 to 6 GHz
    • Return Loss: ≥ 20.8 dB
  • Frequency range: 6 to 11 GHz
    • Return Loss: ≥ 17.7 dB

Environmental data

  • Operating temperature: -65C to +125C
  • 2011/65/EU (RoHS): compliant
Lisätietoja
Väri ei vastattu


Mechanical data

Coaxial RF adapter jack/jack.
SMA jack (female) / TNC jack (female)

  • Number of matings: 500
  • Weight: 0,0079 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 11 GHz
  • Frequency range: DC to 2 GHz
    • Return Loss: ≥ 26.4 dB
  • Frequency range: 2 to 6 GHz
    • Return Loss: ≥ 20.8 dB
  • Frequency range: 6 to 11 GHz
    • Return Loss: ≥ 17.7 dB

Environmental data

  • Operating temperature: -65C to +125C
  • 2011/65/EU (RoHS): compliant
Tuotteiden hinnat näytetään Alv 0%.
