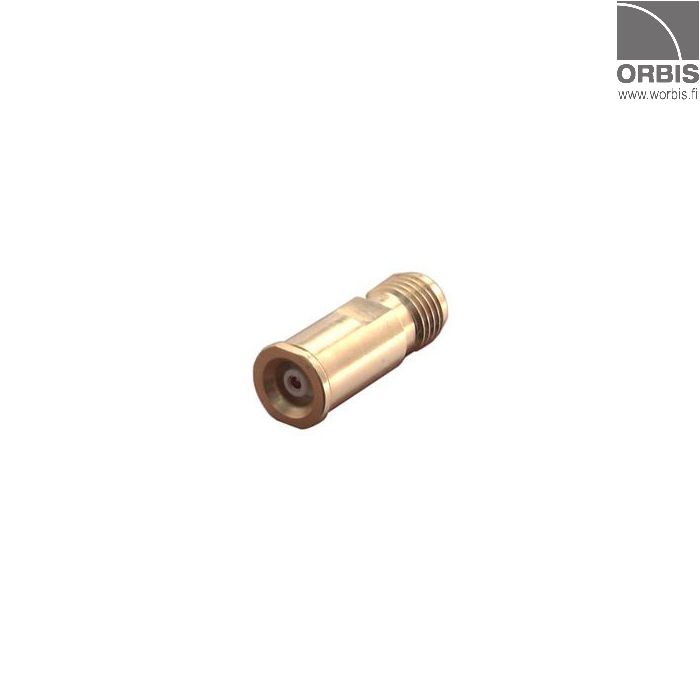

31_MMBX-SMA-50-1/111_NE

RF adapteri. Valmistaja Huber+Suhner.

Tuotekoodi
23004933
88,84 €
Varastossa 0, Toimitusaika 42 arkipäivää tilauksesta, tuotteen ollessa loppu varastosta.


Mechanical data

Coaxial RF adapter jack/jack
MMBX jack (female) / SMA jack (female)

  • Number of matings: 500
  • Weight: 0,0027 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 12.4 GHz
  • Frequency range: DC to 2.5 GHz
    • Return loss: ≥ 32 dB
  • Frequency range: 2.5 to 6 GHz
    • Return loss: ≥ 30 dB
  • Frequency range: 6 to 12.4GHz
    • Return loss: ≥ 16 dB

Environmental data

  • Operating temperature: -55C to +155C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial RF adapter jack/jack
MMBX jack (female) / SMA jack (female)

  • Number of matings: 500
  • Weight: 0,0027 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 12.4 GHz
  • Frequency range: DC to 2.5 GHz
    • Return loss: ≥ 32 dB
  • Frequency range: 2.5 to 6 GHz
    • Return loss: ≥ 30 dB
  • Frequency range: 6 to 12.4GHz
    • Return loss: ≥ 16 dB

Environmental data

  • Operating temperature: -55C to +155C
  • 2011/65/EU (RoHS): compliant
Tuotteiden hinnat näytetään Alv 0%.
