31_716-50-0-2/133_WE

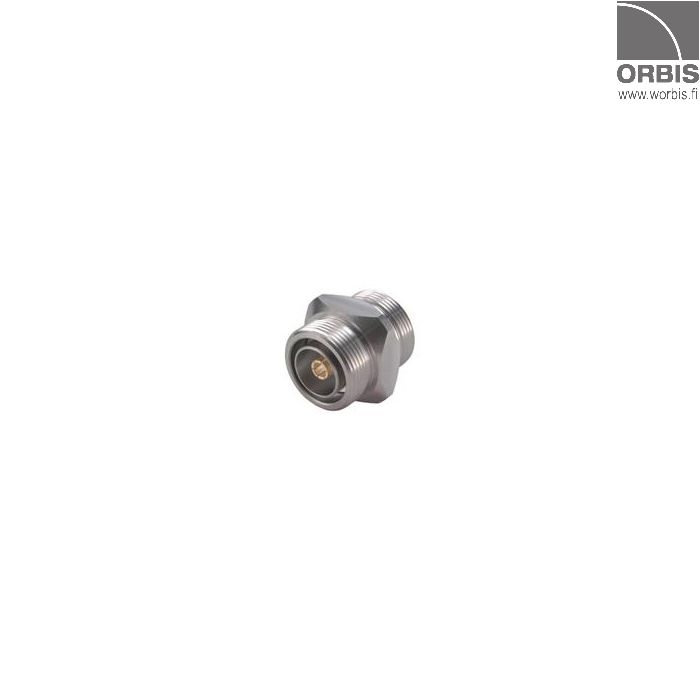

Coaxial PIM RF adapter jack/jack by Huber+Suhner for test and measurement applications.

Tuotekoodi
22658136
117,85 €
Varastossa 0, Toimitusaika 42 arkipäivää tilauksesta, tuotteen ollessa loppu varastosta.


Mechanical data

Coaxial RF adapter jack/jack.
Low passive intermodulation adapter (PIM) for test and measurement applications.
7/16 jack (female) / 7/16 jack (female)

  • Number of matings: 500
  • Weight: 0,1399 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max:  7.5 GHz
  • PIM, 3rd order intermodulation distortion (IMD) max. : Static -165 dBc at 2x 43 dBm / 20 W carrier

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS)compliant


Mechanical data

Coaxial RF adapter jack/jack.
Low passive intermodulation adapter (PIM) for test and measurement applications.
7/16 jack (female) / 7/16 jack (female)

  • Number of matings: 500
  • Weight: 0,1399 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max:  7.5 GHz
  • PIM, 3rd order intermodulation distortion (IMD) max. : Static -165 dBc at 2x 43 dBm / 20 W carrier

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS)compliant
Tuotteiden hinnat näytetään Alv 0%.
