21_716-50-23-44/033_-E

Mechanical data

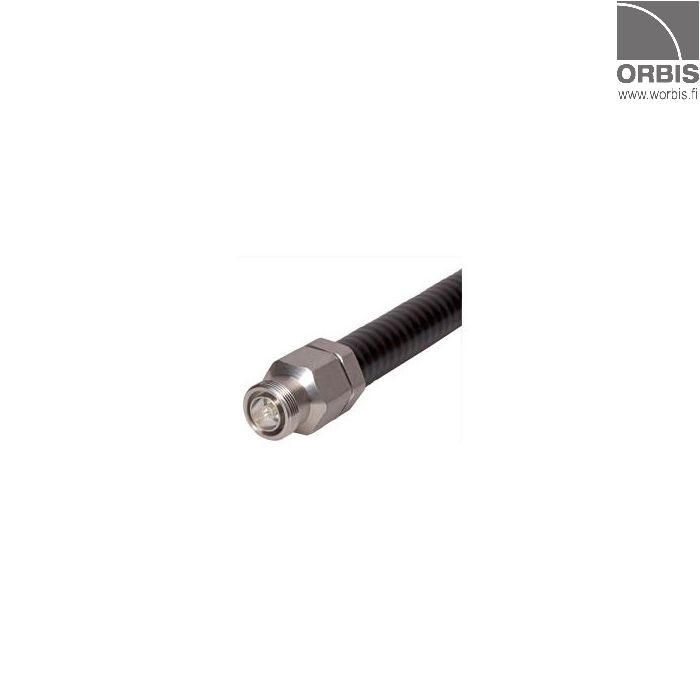

Coaxial straight RF cable jack 7/16 by Huber+Suhner.

• 7/16 jack
• Smart Quick-Fit connector for outdoor applications
• Water protection according to IP68
• Weight: 0,193 kg
• Centre contact: plugged
• Outer contact: clamped

Electrical data

• Impedance: 50 Ω
• Interface frequency max.: 7.5 GHz
• Frequency range: DC to 2.5 GHz
  • Return Loss: ≥ 30 dB
• Frequency range: 2.5 to 3 GHz
  • Return Loss: ≥ 28 dB
• Intermodulation: ≤ Static -155 dBc (2 x 43 dBm carrier)

Environmental data

• Operating temperature: -40C...+85C
• 2011/65/EU (RoHS) compliant
